NSC, NSA, NSW
Swimming pool pumps
The NSC/NSA/NSW series pump is a type of water pump that functions for swimming pool circulation, equipped with a 2 pole motor, 115/230V, protection class IP55, and insulation level F, the NSC35 Pump has the ability for continuous operation and is equipped with the thermal protector that helps the pump safety and protects it from overheating damage.
• Power: 0.37 ~ 2.2 kW
• Head: 5.0 ~ 23.5 m
• Flow range: 3 ~ 35 m³/h
• Temperature of pumped liquid: 5 ~ 50°C
Applications
• Domestic and commecial swimming pool
• Water park
• Water landscape gardening
• Mariculture
• SPA
Features and advantages
Engineering plastics: The pump body adopt reinforced engineering plastics, effective anti-corrosion, tight mechanical seal, and durable.
Equipped with small dirt collector: filter big sundries in the swimming pool and collect the hair to prevent them from entring the pump body and causing impellers damag, and
Visible sealing cover: Transparent sealing cover design, convenien for users to check whether the collector needs to be cleaned at any time.
Working conditions
• Temperature of pumped medium: 5 ~ 50°C
• Ambient temperature: up to 40°C
• Maximum working pressure: 0.3 MPa
• Self-priming height: NSC 3m, NSA and NSW 1.5m
Electric motor
• NEMA service parameter, single-phase ODP motor
• synchronous, 2-pole motor
• Protection class: IP55
• Insulation class: F
• Two voltage configuration: 115/230V

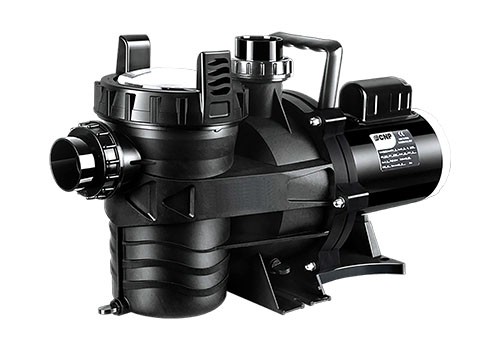

NSA
Performance Range:
• Power: 0.75 ~ 2.2 kW
• Head: 6.1 ~ 23.5 m
• Flow range: 5 ~ 35 m³/h

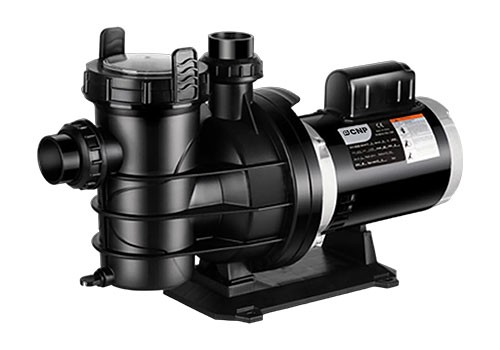

NSC
Performance Range:
• Power: 0.37 ~ 1.1 kW
• Head: 5.0 ~ 18.5 m
• Flow range: 3 ~ 28 m³/h
NSW
Performance Range:
• Power: 0.37 ~ 1.1 kW
• Head: 5.0 ~ 18.5 m
• Flow range: 3 ~ 28 m³/h
