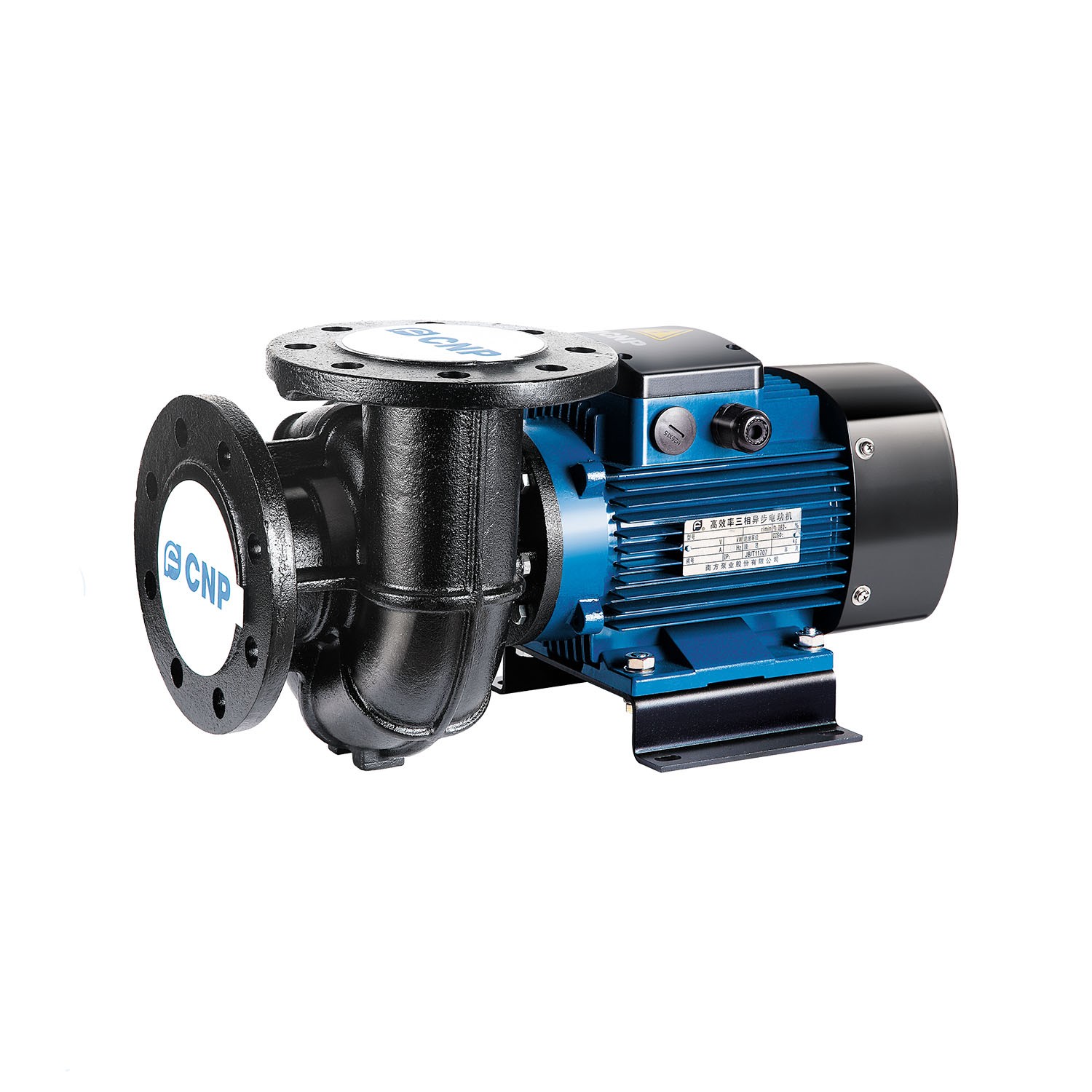

WLT, WLTS
Cooling tower pumps
The WLT, WLTS pump is a low-pressure cantilever monoblock pump features high efficiency, energy efficiency and high quality materials. This pump are capable of draining clean, low-viscosity, non-flammable and other chemically non-aggressbive liquids without abrasive imourities and fibrous elements.
• Power: 1.1 ~ 7.5 kW
• Head: 4 ~ 8 m
• Flow range: 35 ~ 300 m³/h
• Temperature of pumped liquid: -15 ~ 100°C
Applications
The horizontal single-stage centrifugal pump of the WLT, WLTS series is a product with narrowly targeted application areas. It is suitable for pumping clean, non-flammable and non-explosive liquids that do not contain fixed particles and fibers that can cause mechanical or chemical damage to the pump.
• Water circulation in closed and open type cooling towers, condensers
• Equipment cooling
• Water recycling systems in fisheries
• Water supply systems
Features and advantages
The WLT, WLTS series pump unit is a highly efficient horizontal single-stage centrifugal pump.
The main parts of the pump are: electric motor, pump body, impeller, mechanical seal. The pump design allows for easy and quick repair and maintenance. The WLT pump shaft is coaxially connected to the electric motor shaft. The WLTS models use a design with an extended shaft. The sand-cast flow path parts have a smooth, high-quality surface and a streamlined shape, due to which the pump has high hydraulic efficiency.
Working conditions
• Temperature of pumped liquid: -15 ~ 100°C
• Maximum ambient temperature: 40°C
• Altitute above sea level: not more than 1000 m
• Maximum working pressure of system: 0.6MPa (6 bar)
Electric motor
Two-pole and four-pole air-cooled electric motors.
• Protection class: IP55
• Insulation class: F
• Standard voltage 60Hz: 1x220V/3x380V
