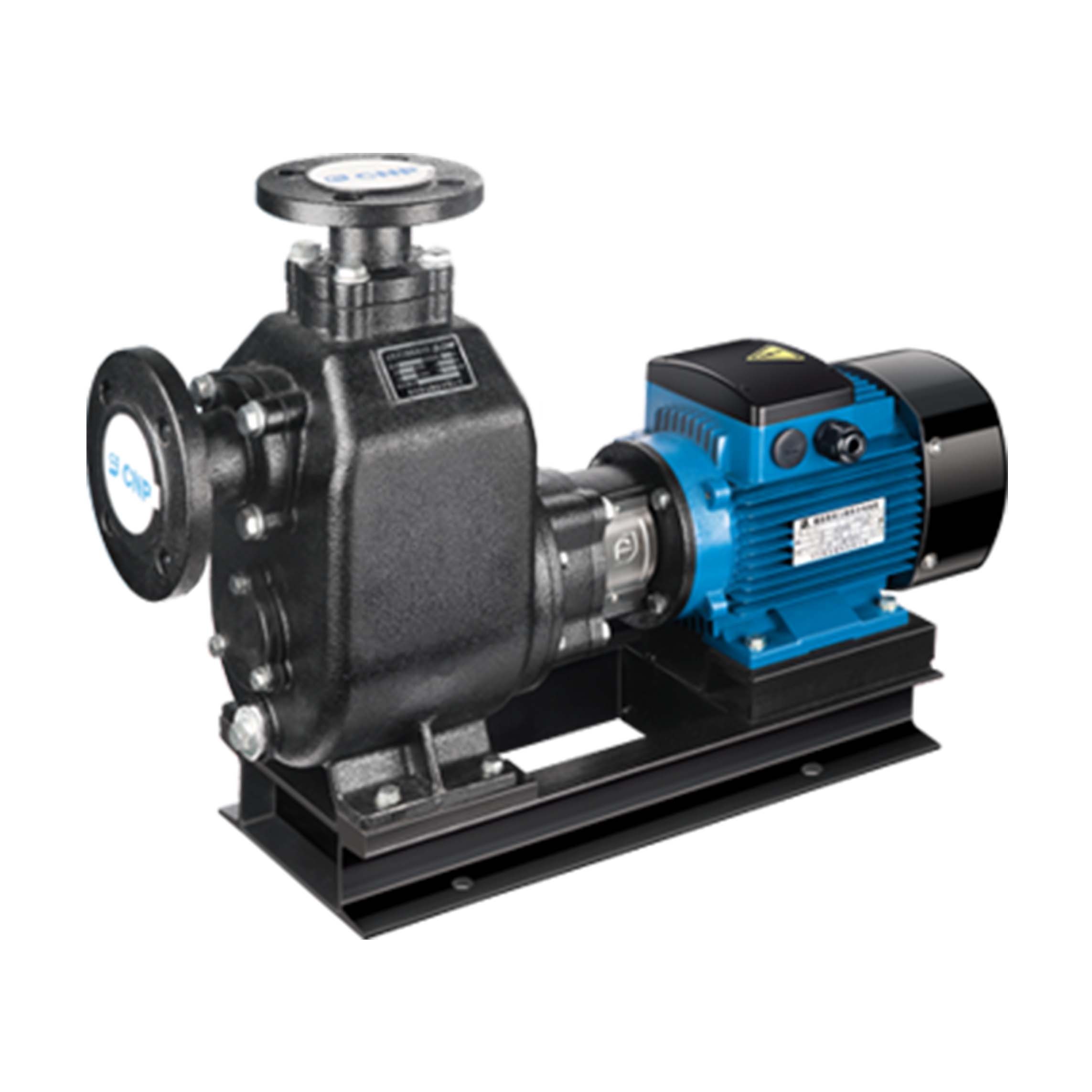

ZW
Non-clog self-priming sewage pumps
The CNP ZW Series adopts an external mixing structure and combines self-priming and non-clogging functions through the unique design of the pump body and impeller flow channel. Compared with similar products, ZW series pumps have excellent self-priming performance and strong sewage discharge capacity, with a simple structure and beautiful appearance. The pump has a unique oil chamber structure to ensure the reliable operation of the mechanical seal. ZW pumps have leading technical performance parameters, wide application, and good development prospects.
• Power: 1.5 ~ 11 kW
• Head: 10 ~ 25 m
• Flow range: 8 ~ 65 m³/h
• Temperature of pumped liquid: 0 ~ 40°C
Applications
The ZW series can be used to transport liquids containing suspended particles and fiber impurities, mainly used in the following industries:
• Environmental protection: Municipal waste, waste treatment
• Industry: Paper, textile, dyes
• Agriculture: River pond farming etc.
Features and advantages
The SP series electric pump units are monoblock units consisting of a standard asynchronous electric motor and a pump part connected by a coupling. The inlet branch pipe is located horizontally along the pump axis, the discharge branch pipe is vertically upward. The shaft seal is of the end type. The pump rotor shaft and the electric motor rotor shaft are rigidly connected by a coupling.
Design featers of SP pumps:
• Stable performance, reliable operation
• Rapid self-priming, high-suction head
• Back pull-out construction: convenient for maintenance and troubleshooting. Daily maintenance can be performed rapidly by common tools, saving time and labour
• Semi-open impeller structure and non-clogging design: Strong passing capacity. Diameter of maximum passing grain for SP-6 is 76mm.
• Convenient usage: The pump can be mounted near cesspit, with only the suction pipe down in the liquid. (Pump must be primed for first start)
Working conditions
• Temperature of pumped liquid: 0 ~ 40°C
• Ambient temperature: ≤40°C
• Liquid pH range: 5 ~ 9
• Liquid density: ≤1.2x103 kg/m³
• Self-priming height: should not exceed the self-priming height specified for the pump, the total length of the suction pipe should not exceed 10 meters
• Flow capacity: The diameter of suspended particles cannot exceed 60% of the pump diameter, and the fiber cannot be more than 5 times the pump diameter.
Electric motor
Standard asychronous electric motor of efficiency class IE2
• Protection class: IP55
• Insulation class: F
• Standard voltage: 3x380V
